This documentary, titled "Building A PORSCHE 911 - Legend On 4 Wheels | Full Documentary" by WELT Documentary, provides an in-depth look into the engineering, manufacturing, restoration, and design history of the iconic Porsche 911 at the Zuffenhausen factory in Stuttgart, Germany, as well as the Weissach Development Center.

Key Overview & Chapters

1. Production at Zuffenhausen

Daily Output: Around 3,000 employees produce approximately 250 cars per day on a single series production line.

Top Model Specs (911 Turbo S): Features a 650 hp 6-cylinder boxer engine, 0–100 km/h in under 2.7 seconds, and top speeds over 300 km/h.

Body Construction: Utilizes an intelligent l

ightweight composite aluminum shell. The Body Works uses 350 employees and 286 robots to complete bodies in about 4 hours.

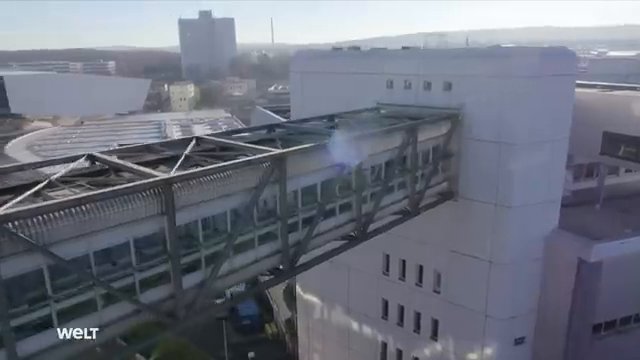

Multi-Level Factory Structure: Located within Stuttgart, the multi-story plant uses overhead skyways to transport vehicles across buildings.

Paint Shop: Cars undergo a cathodic electro-deposition bath (20-micron primer) followed by three spray layers over 9 hours, adding roughly 19 kg of weight.

[ Body Works ] -- (Robots, Welding, 4 hrs)

|

[ Skyway Conveyor ]

|

[ Paint Shop ] -- (4 Coatings, 9 hrs, +19 kg)

|

[ Final Assembly ] -- (117 Stations, "Marriage")

2. History & Evolutio

n of the 911

Origins (1963): Introduced as the 901 at the Frankfurt Auto Show. Renamed 911 after Peugeot objected to using a zero in the middle. Original model had a 2.0L 6-cylinder boxer engine producing 130 hp.

Derivatives & Innovations:

Targa: Created to meet U.S. rollover safety regulations.

Turbo (1975): Introduced 260 hp with its signature "ducktail" spoiler and early turbo lag characteristics.

Motorsport Successes: Monte Carlo Rally (1968–1970), 24 Hours of Daytona (1973), 24 Hours of Le Mans (1979 Kremer 935, 1998 GT1), and the Paris-Dakar Rally (1984 953 and mid-80s 959).

3. Classic Restoration ("Early 911S" Workshop)

Restoration Process: Located in Wuppert

al, Germany, mechanics overhaul air-cooled models (350 through 993 series).

Body Alignment: Uses custom frame benches to straighten skewed chassis. Sheet metal work alone takes 500 to 1,500 man-hours.

Engine Rebuilds: Air-cooled boxer engine rebuilds take roughly 6 weeks. Modern adjustments are sometimes made to smooth out historical turbo lag for better drivability.

4. Engine Assembly & Technical Engineering

Boxer Engine Mechanics: Features a flat 180-degree layout where opposing piston pairs operate synchronously, delivering a low center of gravity and smoother operation.

Manufacturing & Testing:

Produced at a dedicated engine plant by 350 employees across 100 wor

kstations.

Every engine undergoes a 90-second full-throttle automated heat test on a high-security test stand.

260 engines are released daily using fully automated, driveless high-bay storage logistics.

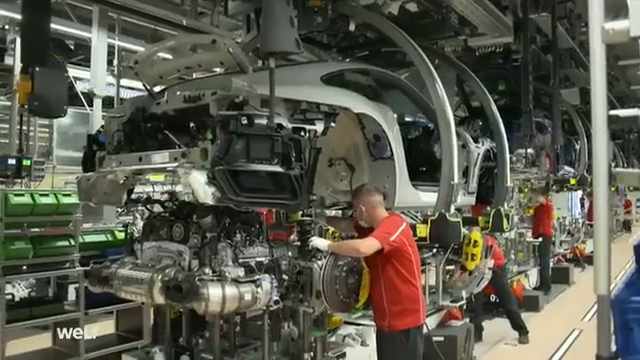

The "Marriage": The process of uniting the drivetrain module to the vehicle body using 96 bolts.

+-------------------------------------------------------------+

| Boxer Engine Layout |

| |

| [Piston] ===> <---|---> <=== [Piston] |

| | |

| [Crankshaft]

|

| | |

| [Piston] ===> <---|---> <=== [Piston] |

| |

| Flat 180-Degree Synchronous Movement |

+-------------------------------------------------------------+

5. Acoustics, Aerodynamics & Testing

Acoustics Lab: An insulated, 1-meter-thick isolated chamber uses torso/head dummies with micro-ear sensors to map acoustic fingerprints from 1,500 to 6,000 RPM.

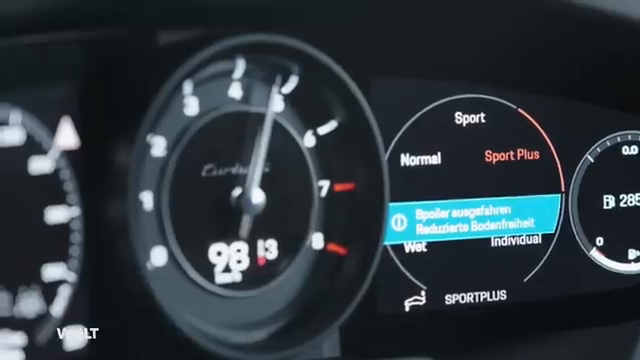

Active Aerodynamics: Uses electromechanical rear wings (which deploy at 90 km/h) and pneumatic front spoilers to deliver up to 170 kg of downforce.

Development at Weissach: 6,500 personnel handle design, 3D clay modeling, engine endurance testing (200–800 hours), and global road testing across 3.2 million kilometers in extreme climates.

6. Interior Craftsmanship & Final Delivery

Saddlery: 400 specialists create custom interiors using water-jet cutting to maximize leather utilization (approx. 2 cowhides per car) and taking 10 man-hours per vehicle.

Weight Reduction: Seats in newer models weigh 3 kg less than previous generations.

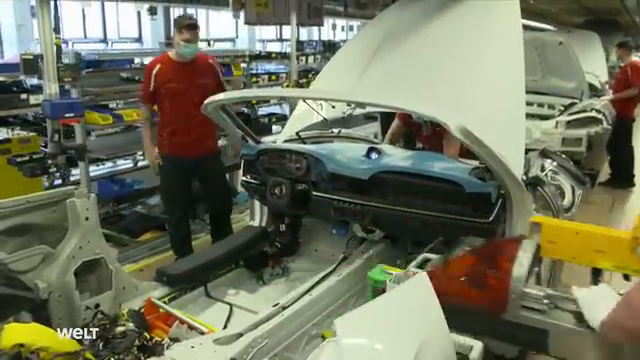

Completion: Takes 117 manufacturing stations and 56 total man-hours to assemble a single vehicle.
